U Type Hot Rolled Sheet Piles
Phone: +8619506887039WhatsApp:+8619506887039Email: Dangchong@jiukun.vipSheet Piles are a high strength interlocking sheeting system and are available in a variety of profiles and lengths. Hot rolled sheet pile are used in construction in both temporary and permanent works. They are easy to install, low cost and reduce construction time.
Hot rolled sheet piles are available in steel grades S270GP, S355GP, S390GP and S430GP (according to European standards EN 10248), + Jis 5571 SY 295 and SY 390

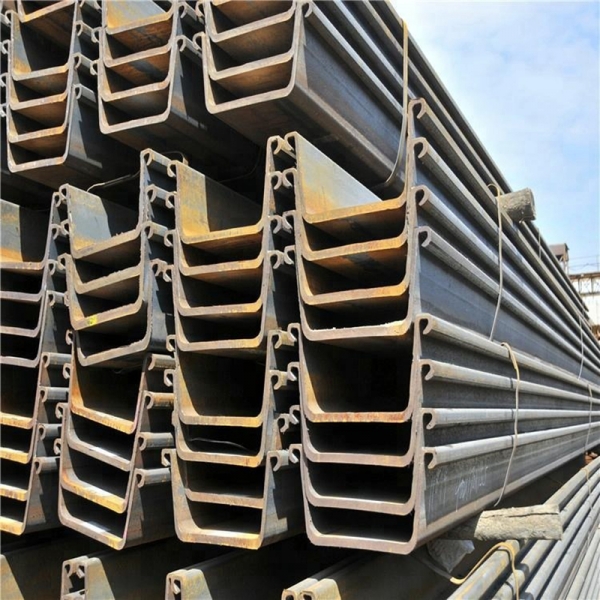

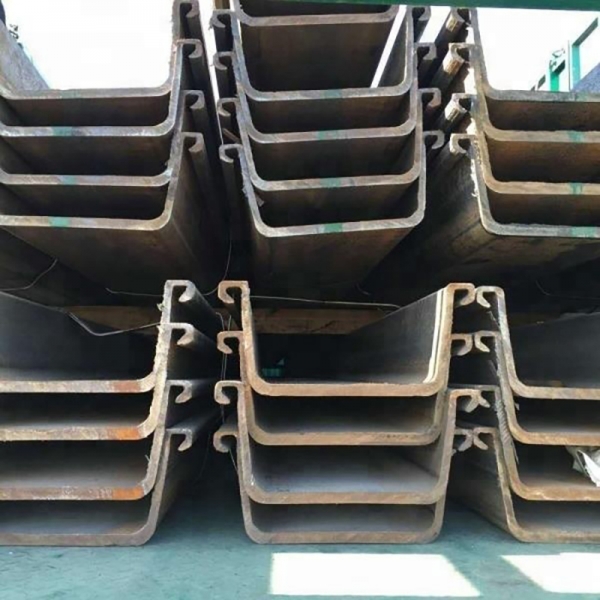

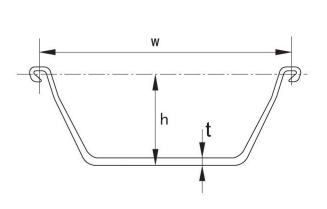

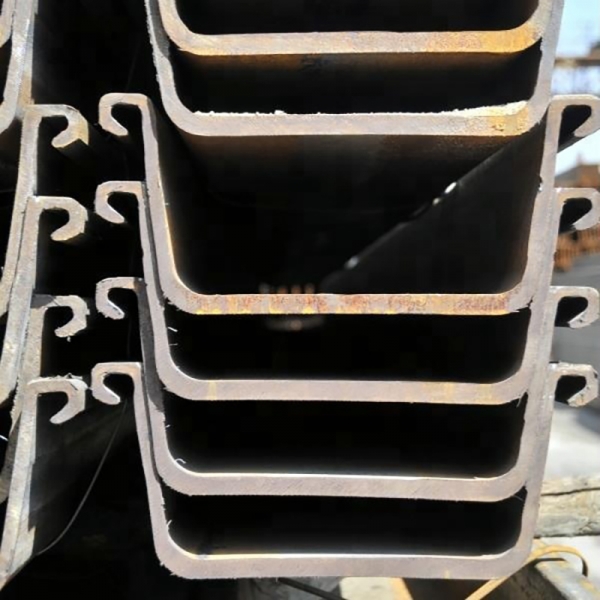

U type sheet piles are U type profiles with interlock at both sides to form the continuous walls,which has center lines in the middle of the double U section wall. U profile sheet piles can stack more stable than any other shapes,so can be used both in permanent and temporary projects. Millons of tons of U-shaped hot rolled sheet piles have been used all over the world for al kind of structures formore than 100 years.U profile sheet pilingwas the tradition, especially in Aisa.
All steel sheet piles can be supplied with handling holes (dia 50 mm, 200 mm from top), as double sheet piles and with corrosion protection. Special piles, corner sections and a wide range of tie bars and anchors are available on request.

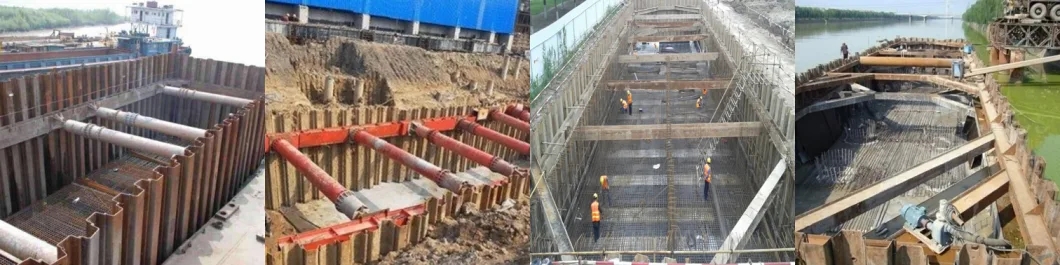

U Type Hot Rolled Sheet Piles Application1.Wharf wall, noise isolation wall, etc. Used in hydraulic engineering.2.Used for wall protection and parking equipment in waterway civil engineering.3.Used for the control of water conservancy project construction pollution.

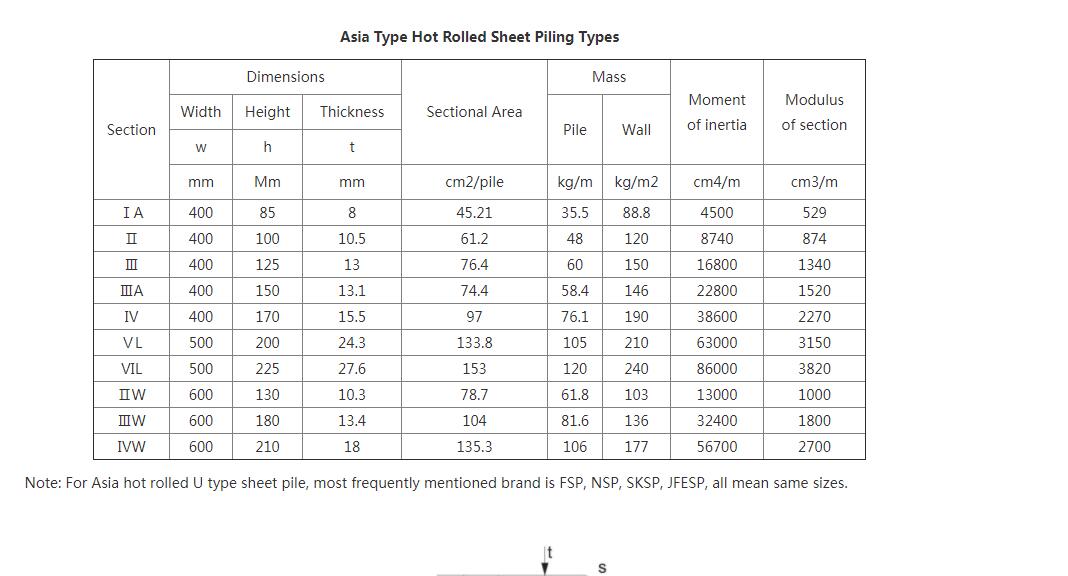

The advantages of U Type Hot Rolled Sheet Piles are multiple:1.wide range of sections forming several series with various geometrical characteristics, enabling the choice of technically and economically optimized sections for each specific project. Our regular stock for U type hot rolled sheet piles are over 80,000 tons 2.combination of great wave depth and high flange thickness leading to excellent statical properties3.symmetrical form of single elements resulting in great aptitude for re-use.4.possibility of assembling and fixing piles into pairs at the mill providing better installation quality and performanceProducts Show
