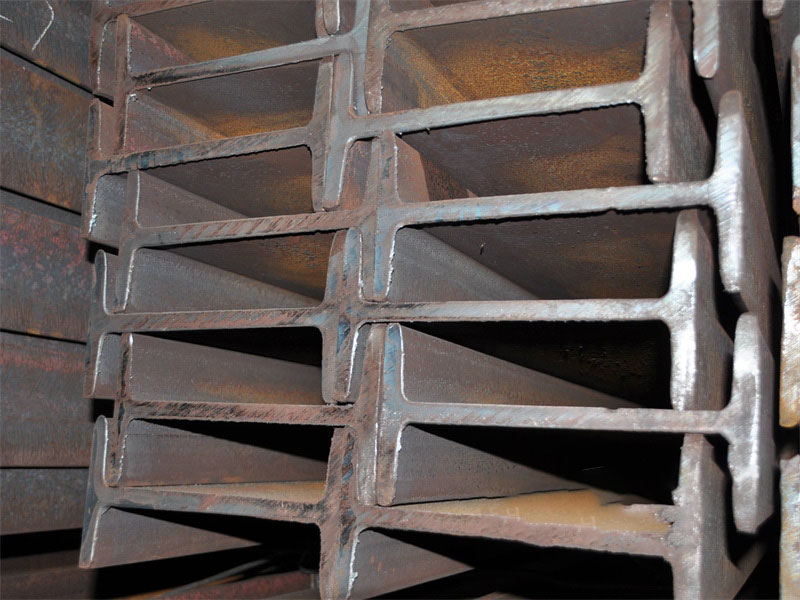

Hot rolled heavy duty H-shaped steel YBT 4832-2020
Phone: +8619506887039WhatsApp:+8619506887039Email: Dangchong@jiukun.vip
Model
Section size/mm
Moment ofinertia/cm
Radius ofinertia percm
Section modulus/cm³Cro5s area TheoreticSaur ce area H B t₁ t₂ r cm² kg/m m² ·m¹ i W W 1100X350 1104 334 50 88 22 1056 829 3.41 1863000 55700 42.0 7.26 33700 3330 1100X350 1120 338 54 96 22 1154 906 3.45 2075000 63000 42.4 7.39 37000 3730 1100X400 1108 106 26 40 22 596.2 468 3.75 1173000 44800 44.4 8.67 21200 2210 1100X400 1124 110 30 48 22 706.2 554 3.79 1422000 55400 44.9 8.86 25300 2700 1100X450 1088 126 46 80 22 1113 873 3.75 2050000 104000 42.9 9.66 37700 4880 1100X450 1104 430 50 88 22 1225 962 3.79 3000000 118000 43.3 9.8 41700 5470 1100X450 1120 134 54 96 22 1339 1050 3.83 2559000 132000 43.7 9.93 45700 6090 1150X350 1136 342 58 104 25 1255 985 3.48 2298000 70900 42.8 7.52 40500 4150 1150X350 1152 346 62 112 25 1356 1060 3.52 2528000 79200 43.2 7.64 43900 4580 1150X350 1168 350 66 120 25 1458 1140 3.56 2767000 88100 43.6 7.77 47400 5030 1150X400 1140 414 34 56 25 818.6 643 3.83 1685000 66600 45.4 9.02 29600 3220 1150X400 1156 418 38 64 25 931.0 731 3.87 1955000 78400 45.8 9.18 33800 3750 1150X400 1172 422 42 72 25 1045 820 3.91 2235000 90900 46.3 9.33 38100 4310 1200X400 1178 412 30 32 25 931.0 731 3.87 1955000 78400 45.8 9.18 33800 3750 1200X400 1210 422 10 48 25 1045 820 3.91 2235000 90900 46.3 9.33 38100 4310 1200X400 1218 422 40 52 25 1160 910 3.95 2526000 104000 46.7 9.47 12500 4880
