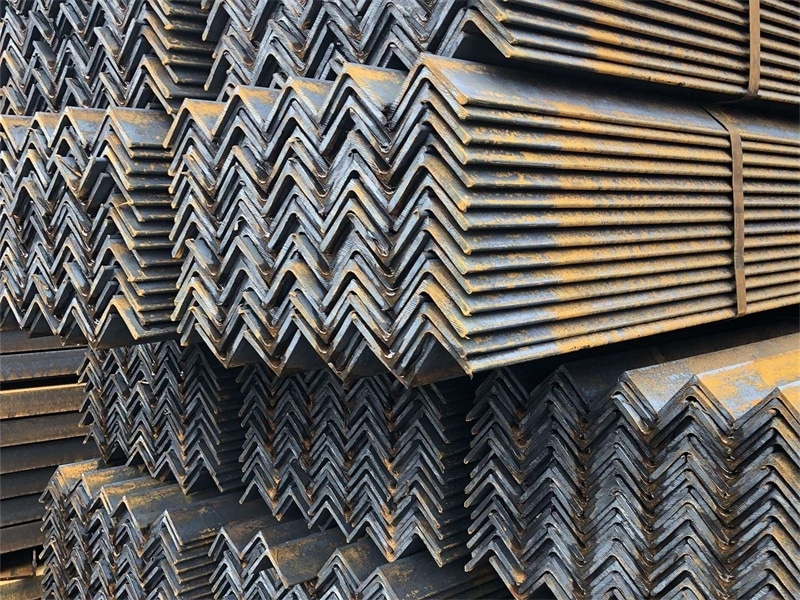

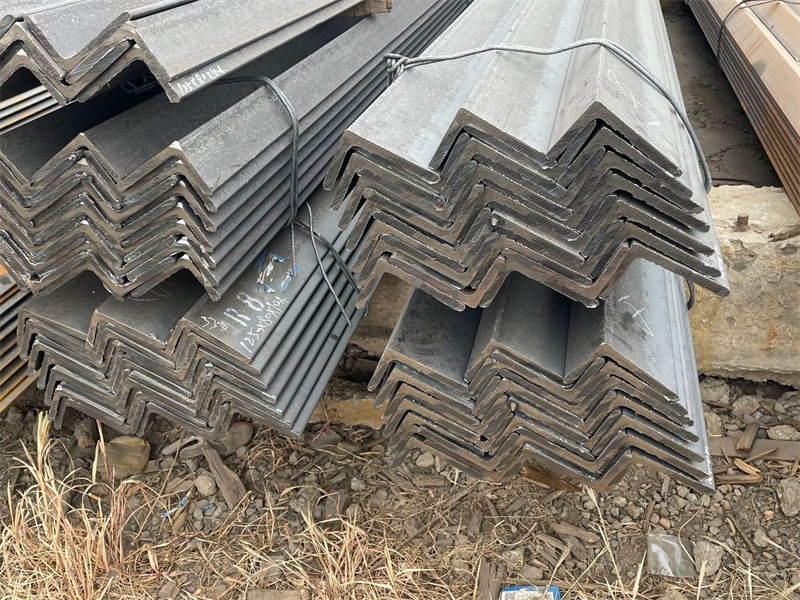

Q235 Angle steel

PRODUCTS: Position: Home > hot Products > Angle steel > Q235 Angle steel

Steel Sheet Pile

H-beam

I-beam

Strip Steel

Angle steel

Channel Steel

‹ ›

Phone: +8619506887039

WhatsApp:+8619506887039

Email: Dangchong@jiukun.vip

HOT ROLLED ANGLE BAR GB/T 706-2016
Model	Section size /mm			Cross section area	理 Theoretical weight	Surface area	Moment ofinertia/cm			Radius ofinertia per cn	Section modulus/cm³	Center of gravity distance cm
	b d r			cm2	kg/m	m2/m	1	x1	y0	x0	W W y0	Z₀
10 100 6 12 11.93 9.37 0.393 115 200 182 47.9 3.1 3.9 15.7 25.7 12.7 2.67
10	100	7	12	13.8	10.8	0.393	132 234 209		54.7	3.09 3.89 1.99	18.1 29.614.3		2.71
10	100	8	12	15.64	12.3	0.393	148 267 235		61.4	3.08 3.88 1.98	20.5 33.215.8		2.76
10	100	9	12	17.46	13.7	0.392	164 300 260		68	3.07 3.86 1.97	22.8 36.8 17.2		2.8
10	100	10	12	19.26	15.1	0.392	180 334 285		74.4	3.05 3.84 1.96	25.1 40.318.5		2.84
10	100	12	12	22.8	17.9	0.391	209 402 331		86.8	3.03 3.81 1.95	29.5 46.821.1		2.91
10	100	14	12	26.26	20.6	0.391	237 471 374		99	3 3.77 1.94	33.7 52.923.4		2.99
10	100	16	12	29.63	23.3	0.39	263 540 414		111	2.98 3.74 1.94	37.8 58.625.6		3.06
11	110	7	12	15.2	11.9	0.433	177 311 281		73.4	3.41 4.3 2.2	22.1 36.117.5		2.96
11	110	8	12	17.24	13.5	0.433	199 355 316		82.4	3.4 4.28 2.19	40.7 19.4		3.01
11	110	10	12	21.26	16.7	0.432	242 445 384		100	3.38 4.25 2.17	30.6 49.422.9		3.09
11	110	12	12	25.2	19.8	0.431	283 535 448		117	3.35 4.22 2.15	36.1 57.626.2		3.16
11	110	14	12	29.06	22.8	0.431	321 625 508		133	3.32 4.18 2.14	41.3 65.3 29.1		3.24
12.5	125	8	14	19.75	15.5	0.492	297 521 471		123	3.88 4.88 2.5	32.5 53.325.9		3.37
12.5	125	10	14	24.37	19.1	0.491	362 652 574		149	3.85 4.85 2.48	40 64.930.6		3.45
12.5	125	12	14	28.91	22.7	0.491	423 783 671		175	3.83 4.82 2.46	41.2 76 35		3.53
12.5	125	14	14	33.37	26.2	0.49	482 916 764		200	3.8 4.78 2.45	54.2 86.439.1		3.61
12.5	125	16	14	37.74	29.6	0.489	537 1050 851		224	3.77 4.75 2.43	60.9 96.3 43		3.68
14	140	10	14	27.37	21.5	0.551	515 915 817		212	4.34 5.46 2.78	50.6 82.6 39.2		3.82
14	140	12	14	32.51	25.5	0.551	604 1100 959		249	4.31 5.43 2.76	59.8 96.9 45		3.9
14	140	14	14	37.57	29.5	0.55	68912801090		284	4.28 5.4 2.75	68.8 10 50.5		3.98
14	140	16	14	42.54	33.4	0.549	770 1470 1220		319	4.26 5.36 2.74	77.5 23 55.6		4.06
15	150	8	14	23.75	18.6	0.592	521 900 827		215	4.69 5.9 3.01	47.4 78 38.1		3.99
15	150	10	14	29.37	23.1	0.591	638 1130 1010		262	4.66 5.87 2.99	58.4 95.5 45.5		4.08
15	150	12	14	34.91	27.4	0.591	749 1350 1190		308	4.63 5.84 2.97	69 112 52.4		4.15
15	150	14	14	40.37	31.7	0.59	85615801360		352	4.6 5.8 2.95	79.5 128 58.8		4.23
15	150	15	14	43.06	33.8	0.59	90716901440		374	4.59 5.78 2.95	84.6 136 61.9		4.27
15	150	16	14	45.74	35.9	0.589	95818101520		395	4.58 5.77 2.94	89.6 143 64.9		4.31
16	160	10	16	31.5	24.7	0.63	78013701240		322	4.98 6.27 3.2	66.7 109 52.8		4.31
16	160	12	16	37.44	29.4	0.63	91716401460		377	4.95 6.24 3.18	7912960.7		4.39
16	160	14	16	43.3	34	0.629	1050 1910 1670		432	4.92 6.2 3.16	91 147 b8.2		4.47
16	160	16	16	49.07	38.5	0.629	118021901870		485	4.89 6.17 3.17	103 165 75.3		4.55
18	180	12	16	42.24	33.2	0.71	132023302100		543	5.59 7.05 3.58	10116578.4		4.89
18	180	14	16	48.9	38.4	0.709	151027202410		622	5.56 7.02 3.56	11618988.4		4.97
18	180	16	16	55.47	43.5	0.709	170031202700		699	5.54 6.98 3.55	131 212 97.8		5.05
18	180	18	16	61.96	48.6	0.708	188035002990		762	5.5 6.94 3.51	146 235 105		5.13
20	200	14	18	54.64	42.9	0.788	210037303340		864	6.2 7.82 3.98	145 236 112		5.46
20	200	16	18	62.01	48.7	0.788	237042703760		971	6.18 7.79 3.96	164 266 124		5.54
20	200	18	18	69.3	54.4	0.787	2620 4810 4160		1080	6.15 7.75 3.94	182 294 136		5.62
20	200	20	18	76.51	60.1	0.787	287053504550		1180	0.12 7.72 3.93	200 322 147		5.69
20	200	24	18	90.66	71.2	0.785	334064605290		1380	6.07 7.64 3.9	236 374 167		5.87
22	220	16	21	68.67	53.9	0.866	319056805060		1310	6.81 8.59 4.37	200326154		6.03
22	220	18	21	76.75	60.3	0.866	354064005620		1450	6.79 8.55 4.35	223 361 168		6.11
22	220	20	21	84.76	66.5	0.865	3870 (110 6150		1590	6.76 8.52 4.34	245 395 182		6.18
